Introduction: The Gold Standard in Harsh Environments

In the heart of an industrial furnace, where temperatures soar beyond 1000°C and the atmosphere can be corrosive, ordinary steel would fail within minutes. Here, only the most robust materials survive, and among them, the German standard grade 1.4848 stands out.

It is not merely a steel; it is a symbol of reliability, predictability, and superior performance in the field of engineering. When applications demand the utmost in heat resistance, carburization resistance, and thermal fatigue resistance, 1.4848 often becomes the engineers' tacit, ultimate choice. This article delves into why DIN 1.4848 has become the enduring "demanding choice" in high-temperature environments – a stringent selection necessitated by its excellence.

1. Decoding the Standard: What is DIN 1.4848?

In the globalized manufacturing industry, the "German Standard" (DIN) remains a benchmark for precision, quality, and reliability. DIN 1.4848 is the concrete embodiment of this tradition in the realm of heat-resistant steels.

• Material Numbering System: "1.4848" is part of the widely used steel material numbering system in Germany and Europe. The leading "1" indicates ferrous materials, and the subsequent numbers precisely correspond to its chemical composition and category.

• Cast Grade Designation: This grade often corresponds to GX40NiCrSi38-18 or similar variants in the foundry sector. This designation intuitively reveals its core composition:

  • GX: Indicates cast steel.

  • 40: Indicates approximately 0.40% carbon content.

  • NiCrSi: Indicates the main alloying elements are Nickel (Ni), Chromium (Cr), and Silicon (Si).

  • 38-18: Indicates approximately 38% nickel content and 18% chromium content.

• Standard Scope: The DIN 1.4848 standard clearly specifies the required chemical composition ranges and mechanical properties the steel must meet for certification, ensuring consistent material quality.

2. Chemical Composition Analysis: The Recipe for Resilience

The exceptional performance of DIN 1.4848 stems from its sophisticated chemical composition design, where each element plays an indispensable role. Its typical chemical composition range is as follows:

Synergistic Effect: This combination of elements is not merely additive. The high nickel content creates its austenitic structure, granting the material a "memory-like" toughness, allowing it to better withstand repeated thermal expansion and contraction without cracking easily. Chromium and silicon form a solid "shield" against oxidative attack. Niobium acts like an internal "stabilizing anchor," ensuring the material's performance does not degrade after long-term high-temperature service.

3. Core Performance Advantages: Why is it the "Demanding Choice"?

3.1. Exceptional Oxidation Resistance (Up to 1150°C)

In high-temperature air, 1.4848 rapidly forms a dense, highly adherent composite protective layer of chromium oxide/silicon oxide on its surface. This barrier effectively prevents further inward diffusion of oxygen, enabling components to operate long-term in extreme environments from 1000°C to 1150°C without premature failure due to "scaling".

3.2. Outstanding Carburization and Sulfidation Resistance

In many industrial furnace environments, the atmosphere is not purely oxidizing. In processes like carburizing or carbonitriding, or when handling hydrocarbons, the furnace contains high concentrations of CO and CH₄. Ordinary heat-resistant steels can embrittle due to carbon ingress. The very high nickel content in 1.4848 significantly impedes carbon penetration, making it the preferred material for components like carburizing furnace trays and retorts. It also demonstrates good resistance in sulfur-containing atmospheres.

3.3. Superior Thermal Fatigue Resistance

For batch-operated furnaces, components undergo repeated heating and cooling. Stresses generated from constrained thermal expansion and contraction can lead to the initiation and propagation of thermal fatigue cracks. The austenitic matrix of 1.4848 offers higher ductility and toughness, allowing it to better absorb and dissipate these cyclic stresses, thereby significantly extending service life under start-stop operating conditions.

3.4. Good High-Temperature Strength and Creep Resistance

While not the strongest creep-resistant alloy, 1.4848 maintains good structural strength and creep resistance at temperatures up to 1000°C (Creep: the slow, time-dependent plastic deformation of a material under stress at high temperature). This offers an excellent balance of properties for components承受ing static or slow-moving loads, such as furnace rolls and supports.

4. Typical Applications: Where 1.4848 Excels

The unique combination of properties of DIN 1.4848 makes it an indispensable material in several high-temperature industrial sectors:

• Heat Treatment Industry:

  • Radiant Tubes, Muffles, Retorts: These components face high temperatures and active atmospheres directly; 1.4848 is the standard material.

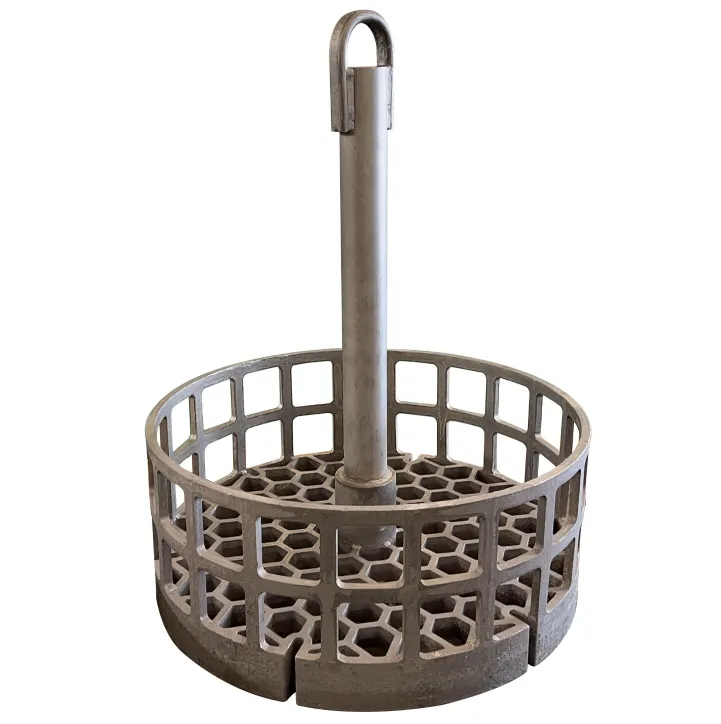

  • Trays, Baskets: Used for carrying workpieces during quenching, annealing, etc., requiring resistance to cyclic loading and high-temperature deformation.

• Petrochemical & Chemical Industry:

  • Tube hangers, supports, and other internal components in steam reformer and cracking furnaces.

• Glass Manufacturing:

  • Glass molds, conveyor rollers, and supports requiring resistance to molten glass erosion and thermal cycling.

• Ceramics & Powder Metallurgy:

  • Sintering furnace rollers and kiln furniture.

5. Machining and Welding: Considerations for Professional Craftsmanship

Selecting 1.4848 means you are dealing with a high-performance material whose machining and welding require specialized knowledge.

• Machining: Its austenitic structure leads to a tendency for work hardening. This necessitates the use of rigid equipment, sharp carbide tools, and appropriate feed rates and cutting speeds to avoid forming an excessively hard "white layer" on the component surface, which would accelerate tool wear or even cause part cracking.

• Welding: Welding 1.4848 is feasible but requires caution.

  • Filler Material Selection: Must use matching or superior nickel-based electrodes or wires.

  • Process Control: Controlled methods like TIG welding are recommended. Preheating (approx. 200-300°C) and controlled interpass temperature are usually necessary, followed by slow cooling after welding to relieve stresses and prevent cold cracking in the heat-affected zone.

6. 1.4848 vs. Other Heat-Resistant Steel Grades

To highlight its positioning, a brief comparison with common grades is useful:

• vs. 1.4828: 1.4828 has lower nickel content. It performs well in oxidizing atmospheres but is far inferior to 1.4848 in terms of carburization resistance, thermal fatigue resistance, and high-temperature strength.

• vs. 1.4835: 1.4835 is another common furnace-grade heat-resistant steel, but 1.4848 generally provides more comprehensive performance under more severe atmospheres (especially carburizing) and at higher temperatures.

Therefore, 1.4848 can be positioned as a high-grade, all-round solution for the most demanding conditions involving high temperatures, highly corrosive atmospheres, and frequent thermal cycling.

Conclusion: An Investment in Reliability and Long-Term Value

Choosing DIN 1.4848 is not just purchasing a steel; it is insuring your critical high-temperature processes. It represents:

• Longer Component Life: Reduced replacement frequency.

• Higher Process Stability: Avoidance of unplanned downtime and product loss due to premature component failure.

• Lower Total Cost of Ownership: Despite a potentially higher initial investment, its exceptional durability and reliability translate into long-term operational benefits and cost savings.

On the battlefield of high temperatures, where materials are tested most severely, the German Standard 1.4848 proves with its solid performance that it is the thoroughly considered, most trustworthy "demanding choice".
