Introduction: Shaping the Backbone of High-Temperature Industry

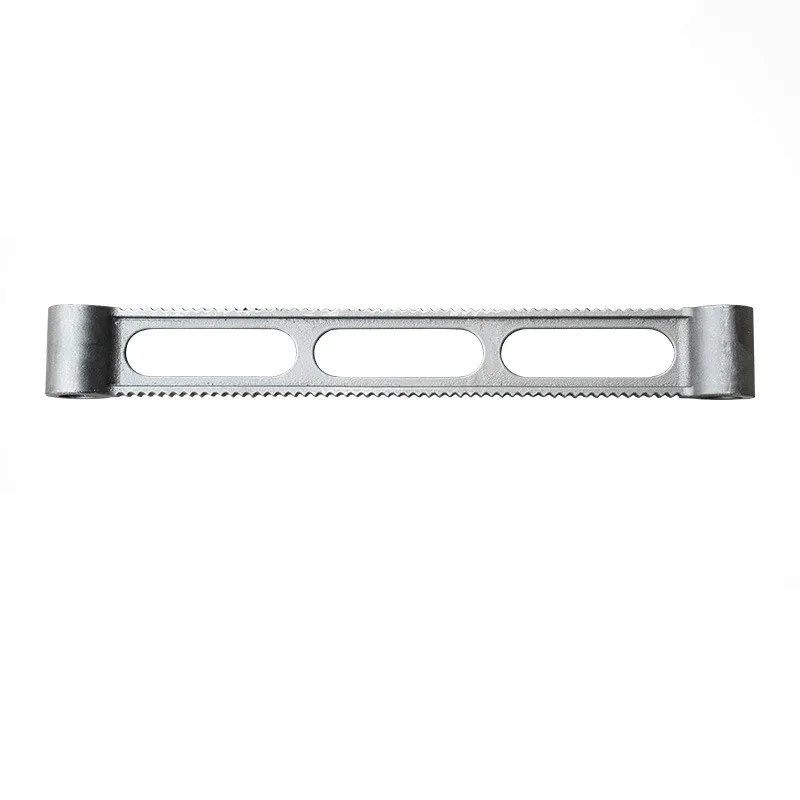

Walk through any industrial facility dealing with extreme heat—a heat treatment shop, a chemical plant, or a power generation station—and you will encounter massive, intricate components that form the very heart of these operations: furnace rolls, radiant tubes, turbine housings, and complex valve bodies. These are not simple blocks of metal; they are often sophisticated shapes with internal passages, varying wall thicknesses, and detailed geometries.

A critical question arises: how are these vital parts, typically made from notoriously hard-to-machine heat-resistant steel, actually manufactured? The answer, in a vast majority of cases, lies in one of humanity's oldest and most versatile metalworking arts: casting. This article will take you deep into the world of casting heat-resistant steel, demystifying the process and highlighting the compelling advantages that make it the preferred manufacturing method for these demanding applications.

1. What is Metal Casting? The Foundational Process

At its essence, casting is a manufacturing process where a liquid material—in this case, molten heat-resistant steel—is poured into a hollow mold cavity that bears the negative impression of the desired part shape. The metal is allowed to solidify inside the mold, and the resulting solid object, called a casting, is then removed and finished.

Think of it like making a complex-shaped ice cube: you pour water into a mold and freeze it. Casting does the same with molten metal, but at temperatures exceeding 1500°C and with far greater engineering control. This fundamental principle allows for the creation of shapes that would be impossible, impractical, or prohibitively expensive to produce by other means like machining from a solid block or forging.

2. The Step-by-Step Journey of a Heat-Resistant Steel Casting

The creation of a high-integrity heat-resistant steel casting is a meticulous, multi-stage process. Here’s how it typically unfolds:

Step 1: Pattern Making
A physical model of the part, called a pattern, is created from wood, plastic, or metal. The pattern is slightly larger than the final part to account for the natural shrinkage of the metal as it cools. For complex parts with undercuts, the pattern may be split into sections.

Step 2: Mold Making
The pattern is used to form the mold cavity. The two most common methods for heat-resistant steel are:

• Sand Casting: The pattern is packed in a special refractory sand mixed with a binder (like clay or chemical resins) to form a robust, disposable mold. The mold is typically made in two halves (cope and drag).

• Investment Casting (Lost-Wax Process): A wax or plastic pattern is used, which is then coated (invested) in a refractory ceramic slurry to form a shell. The wax is then melted out, leaving a precise, monolithic ceramic mold. This is ideal for highly complex parts with excellent surface finish requirements.

Step 3: Melting and Pouring
Precise charges of raw materials—iron, chromium, nickel, and other alloying elements—are melted in a high-temperature furnace (e.g., an electric arc furnace or induction furnace). The molten steel is carefully brought to the exact required chemistry and temperature. It is then poured into the preheated mold, often using gating systems designed to ensure a smooth, turbulence-free fill.

Step 4: Solidification and Cooling
This is a critical phase. The molten metal solidifies from the mold walls inward. The rate of cooling must be controlled, as it directly affects the final microstructure, grain size, and mechanical properties of the casting. Chills (metal inserts) may be placed in the mold to promote directional solidification and prevent internal shrinkage defects.

Step 5: Shakeout and Cleaning
Once the casting has cooled sufficiently, the sand mold is broken apart (in sand casting) or the ceramic shell is knocked off (in investment casting) in a process called shakeout. The casting is then separated from its gating and riser systems (the channels that fed the metal into the cavity).

Step 6: Finishing and Heat Treatment
The rough casting is cleaned by processes like shot blasting or grinding to remove any residual mold material and smooth surfaces. For heat-resistant steels, heat treatment is not optional; it is essential. Processes like solution annealing are performed to homogenize the microstructure, dissolve harmful precipitates, and achieve the desired balance of strength, ductility, and, most importantly, high-temperature performance.

Step 7: Quality Inspection
The final casting undergoes rigorous inspection, which may include dimensional checks, visual examination, and non-destructive testing (NDT) like dye penetrant testing, radiographic (X-ray) testing, or ultrasonic testing to ensure it is free of internal and surface defects.

3. The Compelling Advantages of Casting Heat-Resistant Steel

Why is casting so dominant for these components? The benefits are substantial and directly address the challenges of working with high-performance alloys.

1. Unmatched Design Freedom and Complexity
Casting can produce parts of virtually any shape and size. It allows for:

• Complex Internal Cavities: Hollow sections, cooling channels, and intricate internal passages can be formed directly into the casting, eliminating the need for difficult and costly drilling or assembly.

• Integration of Features: Multiple parts can be consolidated into a single casting, reducing assembly time, potential leak paths, and the number of potential failure points.

• Optimized Shapes: Engineers can design parts with organic, non-uniform shapes that optimally distribute stress and manage thermal expansion, which are often impossible to forge or machine.

2. Material and Cost Efficiency (Near-Net Shape)
Casting is a near-net-shape process, meaning the final part geometry is very close to the finished dimensions. This results in:

• Dramatically Reduced Material Waste: Compared to machining a part from a solid block of expensive, high-alloy steel, casting uses only the metal needed to form the part and the necessary gating system. The scrap rate is significantly lower.

• Lower Machining Costs: Because the part is already close to its final shape, subsequent machining operations are minimized, saving both time and tooling costs.

3. Ability to Create Large and Heavy Components
Casting is one of the most effective methods for producing very large and heavy parts—think massive furnace doors, base frames, or valve bodies weighing several tons. These would be impractical or impossible to produce as a single piece by other methods like forging.

4. Excellent Metallurgical Properties
When properly controlled, the casting process can yield a homogeneous and fine-grained microstructure throughout the part. The solidification process can be engineered to create properties that are isotropic—meaning they are relatively uniform in all directions, unlike forged parts which can have directional properties.

5. Economic Viability for Both Low and High Volumes
While patterns have an initial cost, sand casting is economical for low-volume production and prototypes. For high-volume production of smaller, complex parts, investment casting can be highly automated and cost-effective.

4. Casting vs. Other Manufacturing Methods

• vs. Forging: Forging produces parts with superior directional strength and grain flow, making it ideal for highly stressed, relatively simple components like turbine shafts. However, it cannot achieve the complexity, internal features, or large sizes possible with casting.

• vs. Machining from Bar Stock: Machining is suitable for simple shapes but generates enormous waste when creating complex parts from a solid block. This is especially uneconomical with costly heat-resistant alloys. It also cannot create enclosed internal channels.

Conclusion: The Ideal Synergy for Demanding Applications

The marriage of heat-resistant steel's formidable high-temperature capabilities with the casting process's unparalleled geometric freedom creates a powerful manufacturing solution. Casting transforms the theoretical potential of these advanced alloys into tangible, high-performance components that form the backbone of modern high-temperature industry.

It is this synergy that allows engineers to design and build the sophisticated systems that power our world, from the energy sector to advanced manufacturing, ensuring they can operate reliably at the very edge of material capability.
